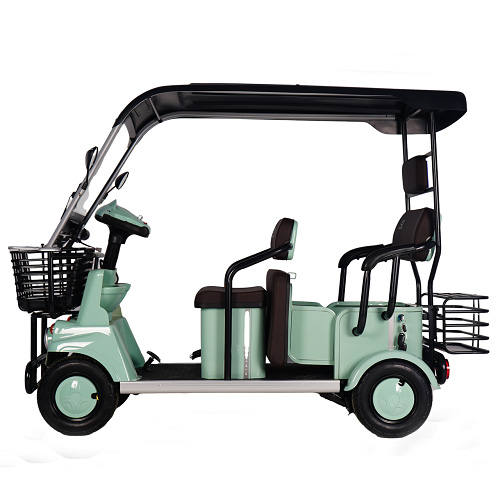

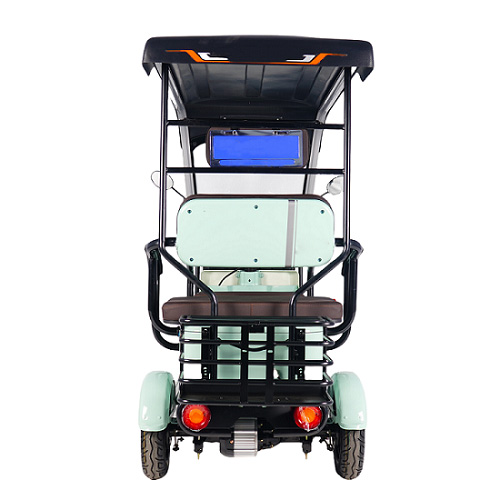

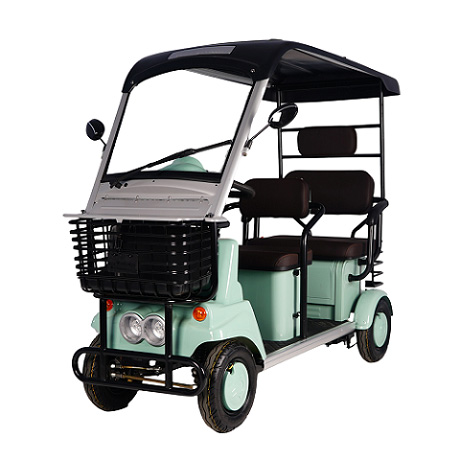

sightseeing bus electric 4 wheel tour scooter with two seater and roof (ES-049)

  • 1).Motor:650W/800W
  • 2).Battery:60V20AH /32AH LEAD-ACID battery
  • 3)Controller:15 tubes
  • 4).Driving range: Around 55km
  • 5).Max load:200KGS
  • 6).Tires:front and rear 300-8 Vacuum
  • 7).Brake: rear drum brake
  • 8).N.W/G.W:138kgs/110kgs
  • 9).Max.speed:20km/h
  • 10).Product size:1930*880*1600mm
  • "11).Charger:110-240V 50-60HZ
  • "
  • 12).Ground clearance:130mm
  • 13).Packing:Iron frame&carton
  • 14).Climbing angle :<= 20°
  • EMAIL   INQUIRY

sightseeing bus electric 4 wheel tour scooter with two seater and roof  (ES-049)


Electronic specification:



Motor650W/800W
Battery60V 20AH/32AH LEAD-ACID
Dashboardcommon meter
Controller15 tubes
Charger110V60HZ ;240V50HZ
Charging time8~10 hours
LampCommon bulb



Performance & Main components:



Max speed20km/h
Range40-55km
Max load20KGS
Tyres(rear)front and rear 300-8 Vacuum
 Front brakedrum brake
Rear brakedrum brake
Climbing angle<= 20°
With reverse gearYES
With Electric brakeYES
Front forkSteel with suspension
ThrottleTwist intelligent speed control
